Following is a quick guide on Howto broadcast local media File OR LIVE
TV Channel using TV Tunner Card over the network using VLC media player,
and this streaming can be viewed at client pc either via VLC media
player or Firefox Web Browser.
REQUIREMENTS:
For Server Mode:1) Any Windows Operating System like XP / 2003 / Win7
2) TV Tunner Card (For TV Channel) (I used DANNY’s TV card)
OR
3) Local Media Files like Videos MV / FLV /DAT file(s)
For Clients Mode:
1) VLC Media Player OR
2) Firefox Web Browser (First install FIREFOX then install VLC in FULL mode)
Section # 1 : LOCAL MEDIAL FILE STREAMING
1 #) SERVER SIDE CONFIGURATION: [GUI method]First install VLC Media plyer. [I used 0.98a version in this example].
Open VLC Media Player,
Goto Media > Streaming ,
Now select your desired file and click on Stream button.
See the attached picture.
Now a new window will open and it will give you many option to choose.
# First in OUTPUT options, select HTTP, in address bar type your system Local ip , in my case its 192.168.2.6 and in port, type any available port, I used 1234.
# Now in Profile section, we will use ready made profile name “Windows (wmv/asf).
That’s it. Now hit the STREAM button, and it will start streaming the file over the network.
See the image below.
2# SERVER SIDE CONFIGURATION [CLI Mode]
You can also stream any file using CLI method which is quick (once you get familiar with the idea how streaming works in GUI), its also useful to make batch scripts if you want start Streaming automatically when the system restarts.
CLI for Local File:
C:\Program
Files\VideoLAN\VLC>vlc.exe -vvv c:\vdo.dat
:sout=#transcode{vcodec=WMV2,vb=800,scale=1,acodec=wma,ab=128,channels=2}:duplicate{dst=std{access=http,mux=asf,dst=192.168.2.6:1234
CLI for TV TUNNER CARD:
vlc -vvv dshow://
:dshow-vdev="713x BDA Analog Capture" :dshow-adev=""
:sout=#transcode{vcodec=WMV2,vb=800,scale=1,acodec=wma2,ab=128,channels=2,samplerate=44100}:duplicate{dst=http{mux=asf,dst=:1234/},dst=display}
:no-sout-rtp-sap :no-sout-standard-sap :ttl=1 :sout-keep
out=#transcode{vcodec vlc -vvv --logo-file C:\aa.jpg dshow://
:dshow-vdev="713x BDA Analog Capture" :dshow-adev="":s =WMV2,vb=800,scale=1,acodec=wma,ab=128,channels=2,sfilter=logo}:duplicate{dst=display,dst=std{access=http,mux=asf,dst=>192.168.2.6:1234 |
HOWTO STREAM Video via HTTP method:
Open Notepad, and paste the following text.(For some reasons, html code doesn’t show properly on wordpress BLOGs, So please copy the raw code from following pastebin link:
http://pastebin.com/d9SnHpjy

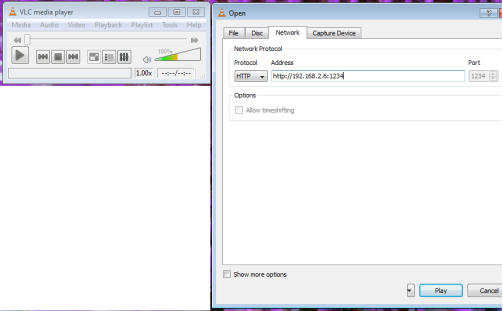

=x=x=x=x=x=x=x=x=x=x=x=x=x=x=x=x=x=x=x=x=x=x=x=x=x=x=x Howto View Streaming Video from Client Side using VLCFirst install VLC Media Player on client computer, then Open VLC media player,Goto Media > Open Network and type http://192.168.2.6:1234 and hit enter,it will start playing the streaming video. See the attached picture. Howto View Streaming Video from Client Side using Firefox Web Browser:Open Firefox Browser and typeSample Output:
# How to change the channel Which is broadcasting . . .
There are couple of options and controls that you can provide to your users. VLC
is very advance and powerful application for all sorts of multimedia
needs. Just dig more n more n you will find the solution. You can even
create IPTV base project in VLC or simply create Video On Deman VOD which is very easy. |
